| Line | Hex | Translation | Meaning |
| 0x00 | 01 3F 02 00 | 575 | 00575-lab.AKEV |
| 0x00 | 01 00 00 06 | 3 | level 3 |
| 0x00 | 01 40 02 00 | 576 | link to 00576-.PNTA |
| 0x00 | 01 41 02 00 | 577 | link to 00577-.PLEA |
| 0x10 | 01 42 02 00 | 578 | link to 00578-.TXCA |
| 0x10 | 01 49 02 00 | 585 | link to 00585-.AGQG |
| 0x10 | 01 4A 02 00 | 586 | link to 00586-.AGQR |
| 0x10 | 01 4B 02 00 | 587 | link to 00587-.AGQC |
| 0x20 | 01 4C 02 00 | 588 | link to 00588-.AGDB |
| 0x20 | 01 4D 02 00 | 589 | link to 00589-.TXMA |
| 0x20 | 01 4E 02 00 | 590 | link to 00590-.AKVA |
| 0x20 | 01 4F 02 00 | 591 | link to 00591-.AKBA |
| 0x30 | 01 53 02 00 | 595 | link to 00595-.IDXA |
| 0x30 | 01 54 02 00 | 596 | link to 00596-.IDXA |
| 0x30 | 01 50 02 00 | 592 | link to 00592-.AKBP |
| 0x30 | 01 51 02 00 | 593 | link to 00593-.ABNA |
| 0x40 | 01 43 02 00 | 579 | link to 00579-.AKOT |
| 0x40 | 01 52 02 00 | 594 | link to 00594-.AKAA |
| 0x40 | 01 C2 03 00 | 962 | link to 00962-.AKDA |
| 0x40 | 80 8D D7 C4 | -1724.4219 | maximal negative x-coordinate of the lab model |
| 0x50 | 00 00 C2 C2 | -97.0000 | maximal negative y-coordinate of the lab model |
| 0x50 | EC 99 09 C5 | -2201.6201 | maximal negative z-coordinate of the lab model |
| 0x50 | 5C 57 2C 45 | 2757.4600 | maximal positive x-coordinate of the lab model |
| 0x50 | 00 7E E2 43 | 452.9844 | maximal positive y-coordinate of the lab model |
| 0x60 | 68 5D 0D 45 | 2261.8379 | maximal positive z-coordinate of the lab model |
| 0x70 | 00 00 40 41 | 12.0000 | unknown, but in every level always the same |

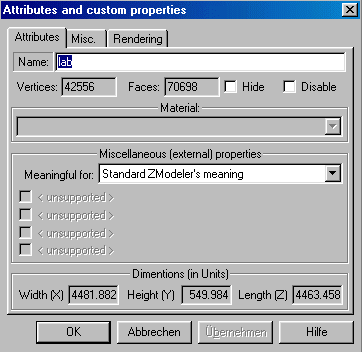

If you form the difference between the maximal negative and maximal positive x-coordinate (the same for the y and z-coordinate), you will get the dimensions of the lab model. See the image below.
