AKDA FILE
Door Frame Array - Level File

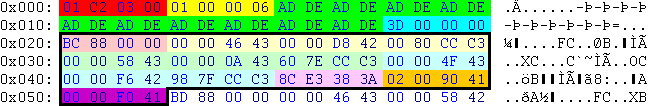

Hex	Translation	Meaning
01 C2 03 00	962	00962-.AKDA
01 00 00 06	3	level 3
AD DE	dead	not used
3D 00 00 00	61	61 packages follow (one package is edged in black)
Below follows the first package.
BC 88 00 00	35004	AGQG package ID
00 00 46 43	198.000000	min. x-coordinate of the doorframe
00 00 D8 42	108.000000	min. y-coordinate (height) of the doorframe
00 80 CC C3	-409.000000	min. z-coordinate of the doorframe
00 00 58 43	216.000000	max. x-coordinate of the doorframe
00 00 0A 43	138.000000	max. y-coordinate (height) of the doorframe
60 7E CC C3	−408.987305	max. z-coordinate of the doorframe
00 00 4F 43	207.000000	x-coordinate of the center of the doorframe
00 00 F6 42	123.000000	y-coordinate (height) of the center of the doorframe
98 7F CC C3	-408.996826	z-coordinate of the center of the doorframe
8C E3 38 3A	0.000705	depth of the doorframe
02 00 90 41	18.000004	width of the doorframe
00 00 F0 41	30.000000	height of the doorframe
