Melee_Profile.BINA File

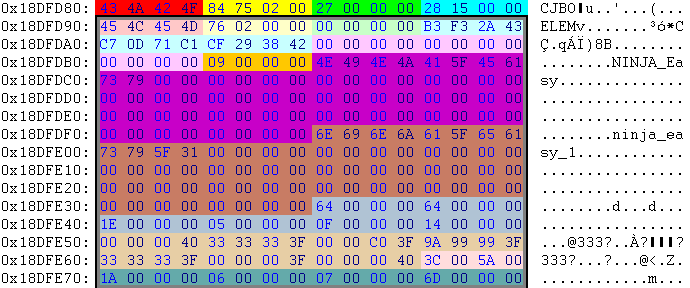

This file contains 45 packages. Every package is subdivided in 3 parts. The first image shows the full first part, the second image the first block of the second part and the third image the last block of the third part. All images belong to the first package.

Hex	Translation	Meaning
43 4A 42 4F	OBJC	object collection
84 75 02 00	161156	161156 bytes is the length of the following melee profile part from this position
27 00 00 00	39	unknown; do not change it
28 15 00 00	5416	5416 bytes (338.5 lines) is the lenght of the following package (area edged in black)
Below follows the first package.
Below follows the first part.
45 4C 45 4D	MELE	melee
76 02 00 00	630	old file ID
00 00 00 00	0	unknown
B3 F3 2A 43	170.951950	x-position of ???
C7 0D 71 C1	-15.065864	y-position (height) of ???
CF 29 38 42	46.040829	z-position of ???
00 00 00 00	0.000000	rotation on the x-axis in degrees
00 00 00 00	0.000000	rotation on the y-axis in degrees
00 00 00 00	0.000000	rotation on the z-axis in degrees
09 00 00 00	9	melee ID
NINJA_Easy		space for notes
ninja_easy_1		character class name (reference to a ninja_easy_1.ONCC file)
64 00 00 00	100	notice in percent
64 00 00 00	100	dodge base in percent
1E 00 00 00	30	damage amount
05 00 00 00	5	dodge extra in percent
0F 00 00 00	15	1v1 blcok in percent
14 00 00 00	20	group block in percent
00 00 00 40	2.000000	not blocked
33 33 33 3F	0.700000	must change stance
00 00 C0 3F	1.500000	blocked, but unblockable
9A 99 99 3F	1.200000	blocked, but has stagger
33 33 33 3F	0.700000	blocked, but has blockstun
00 00 00 3F	0.500000	blocked
00 00 00 40	2.000000	throw danger
3C 00	60	unknown; always the same
5A 00	90	unknown
1A 00 00 00	26	number of action moves
06 00 00 00	6	number of reaction moves
07 00 00 00	7	number of spacing moves; (sum of all move numbers = amount of blocks of part 2)
6D 00 00 00	109	amount of blocks of part 3

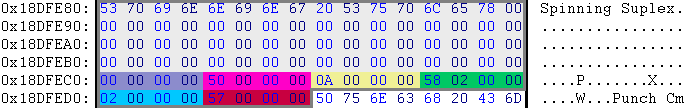

Below follows the first block of the second part.
Spinning Suplex		space for notes
00 00 00 00	0	move option; it's a bitset; bitset still unknown
50 00 00 00	80	weight
0A 00 00 00	10	unknown
58 02 00 00	600	repeat delay in frames
02 00 00 00	2	amount of blocks of the third part that belongs to this block
57 00 00 00	87	part three starts with this block (Thanks to Loser who figured that out.)
Below follows the last block of the third part.
04 00 00 20	4, 32	move id, move type the move id belongs to the move type; these move identifications are possible the move type comes as a high bit; the following types are possible (values in dec): 0 -  attack 16 -  position 32 -  maneuver 48 -  evade 64 -  throw (Tanks to geyser who figured that out.)
CD CC 4C 3F	0.800000	first move parameter (animation lenght in seconds)
00 00 00 00	0	second move parameter
00 00 00 00	0	third move parameter
