Patrol_Path.BINA File

Hex	Translation	Meaning
43 4A 42 4F	OBJC	object collection
B4 1F 00 00	8116	8116 bytes is the length of the following patrol path part from this position
27 00 00 00	39	unknown; do not change it

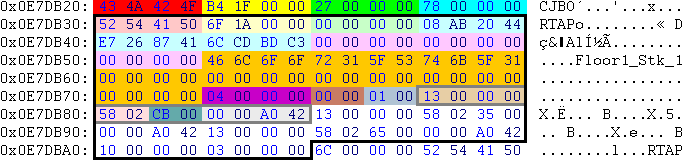

78 00 00 00	120	120 bytes (7.5 lines) is the lenght of the following package (area edged in black)
Below follows the first package.
52 54 41 50	PATR	patrol
6F 1A 00 00	6767	old file ID
00 00 00 00	0	unknown
08 AB 20 44	642.672363	x-position of the patrol path start point
E7 26 87 41	16.893995	y-position (height) of the patrol path start point
6C CD BD C3	-379.604858	z-position of the patrol path start point
00 00 00 00	0.000000	rotation on the x-axis in degrees
00 00 00 00	0.000000	rotation on the y-axis in degrees
00 00 00 00	0.000000	rotation on the z-axis in degrees
Floor1_Stk_1		patrol path name
04 00 00 00	4	amount of blocks which follow
00 00	0	patrol path ID
01 00	1	return to nearest path (0 = no, 1 = yes)
Below follows the first block. It's a part of the package.
13 00 00 00	19	block option ID; the following block option IDs are used (values in dec): 0 -  move to flag (short) 1 -  stop (nothing); (not used in Oni) 2 -  pause in frames (long) 3 -  look at flag (short) 4 -  look at point (float, float, float); (not used in Oni) 5 -  move and face to flag (short) 6 -  run path in a loop (nothing) 7 -  movement mode (long) - the following movement modes are possible: 0 - walk in firing position 3 - walk crouch in firing position 4 - walk relaxed (weapon down) 5 - walk in firing position (the same as 0) 6 - run relaxed (weapon down) 7 - run in firing position Don't use other numbers. Oni will crash.   8 -  (not used in Oni) 9 -  (not used in Oni) 10 -  move through flag (short, float); character moves to this flag until he/she has reached the radius border of it 11 -  move through point (float, float, float); (not used in Oni) 12 -  stop looking (nothing) 13 -  free facing (nothing); used only once 14 -  glance at flag for ... frames (short + long) - character looks (rotates only the head) to the flag for the fixed time 15 -  move near flag (short + float) - character moves to this flag until he/she has reached the radius border of it 16 -  run path in a loop from block number (long) - runs the complete path once; after that it loops the path from the block number to the end (note that the block number of the first block is zero and not one) 17 -  time + rotation in degrees (short + float) - character looks/aims around for the fixed time 18 -  unkown (nothing follows) 19 -  time + flag + rotation in degrees (short + short + float) - character moves to the flag and when reached he/she looks/aims around for the fixed time 20 -  time follows (short) 21 -  patrolscript follows (short) - function with this id is called up (f.e. id = 1, called up function = patrolscript0001) 22 -  ignore player (byte) - 0 = off; 1 = on 23 -  flag + time + firing spread in degrees (short + short + float) - character faces to to the flag and fires his/her weapon for the fixed time (doesn't work on stairways)
58 02	600	sleep time in 1/60 seconds
CB 00	203	flag ID
00 00 A0 42	80.000000	look around angle in degrees

Back to BINA File
