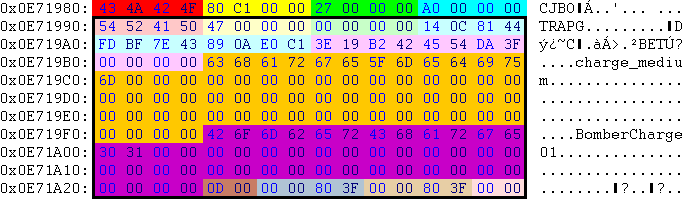

| Hex | Translation | Meaning |
|---|
| 43 4A 42 4F | OBJC | object collection |
| 80 C1 00 00 | 49536 | 49536 bytes is the length of the following particle part from this position |
| 27 00 00 00 | 39 | unknown; do not change it |
| A0 00 00 00 | 160 | 160 bytes (10 lines) is the lenght of the following package (area edged in black) |
| Below follows the first package. |
| 54 52 41 50 | PART | particle |
| 47 00 00 00 | 71 | old file ID |
| 00 00 00 00 | 0 | unknown |
| 14 0C 81 44 | 1032.377441 | x-position of the particle |
| FD BF 7E 43 | 254.749954 | y-position (height) of the particle |
| 89 0A E0 C1 | -28.005144 | z-position of the particle |
| 3E 19 B2 42 | 89.049301 | rotation on the x-axis in degrees |
| 45 54 DA 3F | 1.705697 | rotation on the y-axis in degrees |
| 00 00 00 00 | 0.000000 | rotation on the z-axis in degrees |
| charge_medium | particle type name (reference to 05484-3RAPcharge_medium.BINA of level 0) |
| BomberCharge01 | particle name |
| 0D 00 | 13 | unknown |
| 00 00 80 3F | 1.000000 | unknown |
| 00 00 80 3F | 1.000000 | unknown |
| 00 00 | 0 | unknown, always zero; maybe only a filler |
Particle.BINA File
