Trigger_Volume.BINA File

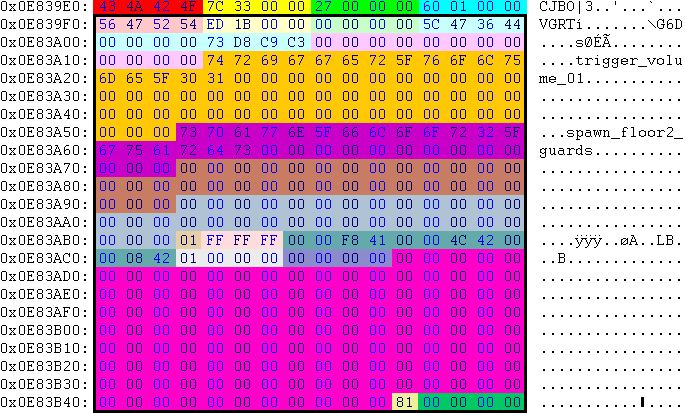

Hex	Translation	Meaning
43 4A 42 4F	OBJC	object collection
7C 33 00 00	13180	13180 bytes is the length of the following trigger volume part from this position
27 00 00 00	39	unknown; do not change it
60 01 00 00	352	352 bytes (22 lines) is the lenght of the following package (area edged in black)
Below follows the first package.
56 47 52 54	TRGV	trigger volume
ED 1B 00 00	7149	old file ID
00 00 00 00	0	unknown
5C 47 36 44	729.114990	x-position of the trigger volume
00 00 00 00	0.000000	y-position (height) of the trigger volume
73 D8 C9 C3	-403.691009	z-position of the trigger volume
00 00 00 00	0.000000	rotation on the x-axis in degrees
00 00 00 00	0.000000	rotation on the y-axis in degrees
00 00 00 00	0.000000	rotation on the z-axis in degrees
trigger_volume_01		name of the trigger volume
spawn_floor2_guards		enter function; called up when you enter the trigger volume
not used		inside function; called up when you're inside the trigger volume
not used		exit function; called up when you leave the trigger volume
01	1	teams, which can trigger off the trigger volume; it's a bitset; the following bits are possible (values in dec): 0 -  nothing 1 -  Konoko 2 -  TCTF 4 -  Syndicate 8 -  Neutral 16 -  SecurityGuard 32 -  RogueKonoko 64 -  Switzerland 128 -  SyndicateAccessory (Thanks to geyser who figured that out.)
FF FF FF	unknown	unknown, always the same; maybe only a filler
00 00 F8 41	31.000000	x-dimension of the trigger volume
00 00 4C 42	51.000000	y-dimension (height) of the trigger volume
00 00 08 42	34.000000	z-dimension of the trigger volume
01 00 00 00	1	trigger volume ID
00 00 00 00	0	trigger volume ID of the parent trigger volume, if this one is a child
not used		space for notes
81	129	setting of the trigger volume; it's a bitset; the following bits are possible (values in dec): 0 -  all functions reset 1 -  entry function called up once, rest reset 2 -  inside function called up once, rest reset 4 -  exit function called up once, rest reset 8 -  entry function disabled 16 -  inside function disabled 32 -  exit function disabled 64 -  all functions disabled 128 -  only the player character can fire off the trigger volume (Thanks to geyser who figured that out.)
00 00 00 00	0	unknown, always zero; maybe only a filler
