Sound.BINA File

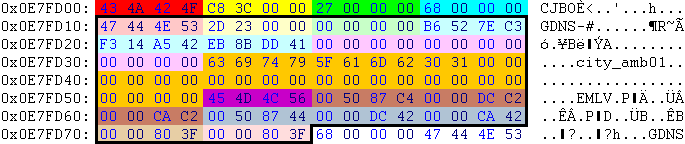

Hex	Translation	Meaning
43 4A 42 4F	OBJC	object collection
C8 3C 00 00	15560	15560 bytes is the length of the following sound part from this position
27 00 00 00	39	unknown; do not change it
A0 00 00 00	104	104 bytes (6.5 lines) is the lenght of the following package (area edged in black)
Below follows the first package.
47 44 4E 53	SNDG	sound geometry
2D 23 00 00	9005	old file ID
00 00 00 00	0	unknown
B6 52 7E C3	-254,323090	x-position of the sound
F3 14 A5 42	82,540916	y-position (height) of the sound
EB 8B DD 41	27,693319	z-position of the sound
00 00 00 00	0.000000	rotation on the x-axis in degrees
00 00 00 00	0.000000	rotation on the y-axis in degrees
00 00 00 00	0.000000	rotation on the z-axis in degrees
city_amb01		sound name (reference to 06452-city_amb01.amb.OSBD of level 0)
45 4D 4C 56	VLME	sound geometry type; the following types are possible: EMLV (VLME) - volume (rectangular parallelepiped) RHPS (SPHR) - sphere
00 50 87 C4	-1082.500000	volume: maximum negative x-dimension sphere: minimum volume distance
00 00 DC C2	-110.000000	volume: maximum negative y-dimension sphere: maximum volume distance
00 00 CA C2	-101.000000	volume: maximum negative z-dimension sphere: volume (how loud the sound is)
00 50 87 44	1082.500000	volume: maximum positive x-dimension sphere: pitch
00 00 DC 42	110.000000	volume: maximum positive x-dimension sphere: not used; always zero
00 00 CA 42	101.000000	volume: maximum positive x-dimension sphere: not used; always zero
00 00 80 3F	1.000000	volume: volume (how loud the sound is) sphere: not used; always zero
00 00 80 3F	1.000000	volume: pitch sphere: not used; always zero

Back to BINA File
