IGHH FILE
IGUI (In-Game User Interface) HUD (Head-Up Display) Help - Level 0 File
IGHH FILE
 |

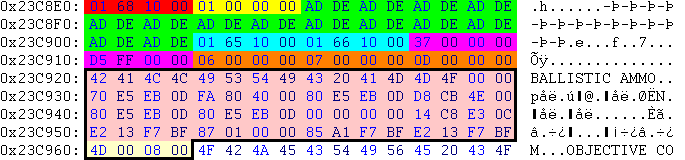

| Hex | Translation | Meaning |
|---|---|---|
| 01 68 10 00 | 4200 | 04200-hud_help_info.IGHH |
| 01 00 00 00 | 0 | level 0 |
| AD DE | dead | not used |
| 01 65 10 00 | 4197 | link to 04197-left_help.TXMP |
| 01 66 10 00 | 4198 | link to 04198-right_help.TXMP |
| 37 00 | 55 | horizontal offset of left HUD image to left screen border, in pixels |
| 00 00 | 0 | unknown; vertical offset of left HUD image, or padding? |
| D5 FF | -42 | horizontal offset of right HUD image to right screen border, in pixels |
| 00 00 | 0 | unknown; vertical offset of right HUD image, or padding? |
| 06 00 00 00 | 6 | 6 words at the left side |
| 07 00 00 00 | 7 | 7 words at the right side |
| 0D 00 00 00 | 13 | 13 word-packages togheter (one package is edged in black) |
| Below follows the first package. | ||
| BALLISTIC AMMO | space for words (all entries after the fist 00 are useless) | |
| 4D 00 | 77 | the word(s) starts 77 pixel from the left border of the left HUD image |
| 08 00 | 8 | the word(s) starts 8 pixel from the top border of the left HUD image |
