ONMA FILE
Imported Marker Node Array - Level File
ONMA FILE
 |

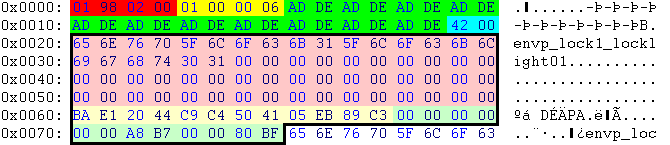

| Hex | Translation | Meaning |
|---|---|---|
| 01 98 02 00 | 664 | 00664-.ONMA |
| 01 00 00 06 | 3 | level 3 |
| AD DE | dead | not used |
| 42 00 | 66 | 66 packages follow (one package is edged in black) |
| Below follows the first package. | ||
| envp_lock1_... | particle name | |
| BA E1 20 44 | 643.526977 | x-position of the particle |
| C9 C4 50 41 | 13.048043 | y-position (height) of the particle |
| 05 EB 89 C3 | z-position of the particle | |
| 00 00 00 00 | 0.000000 | x-value of the normal vector |
| 00 00 A8 B7 | 0.000020 | y-value (height) of the normal vector |
| 00 00 80 BF | -1.000000 | z-value of the normal vector |
It seems, that Oni doesn't need this file, because I could set this complete file plus the ONMA link in the ONLV file to zero without any visible effects.
