PSPC FILE
Part Specification - Message File
PSPC FILE
 |

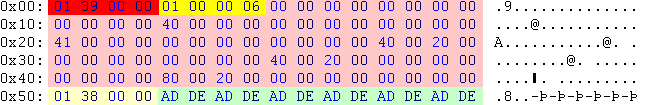

| Hex | Translation | Meaning |
|---|---|---|
| 01 39 00 00 | 57 | 00057-level_3_part.PSpc |
| 01 00 00 06 | 3 | level 3 |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 40 00 | 64 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 41 00 | 65 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 40 00 | 64 | x-coordinate on the texture |
| 20 00 | 32 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 40 00 | 64 | x-coordinate on the texture |
| 20 00 | 32 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 80 00 | 128 | x-coordinate on the texture |
| 20 00 | 32 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 00 00 | 0 | x-coordinate on the texture |
| 00 00 | 0 | y-coordinate on the texture |
| 01 38 00 00 | 56 | link to 00056-h_03.TXMP |
| AD DE | dead | not used |
What's stored There are 9 rectangles stored in PSpc: 4 corners, 4 sides and one interior rectangle. Typically all 9 are used (to draw buttons for example) or only one is used (the top left corner, to draw checkboxes for example). There are cases where the top left corner and the interior rectangle are present which indicates that the code can choose what part to draw. The reason for using 9 rectangles is to allow drawing of buttons (and anything else that has a border) in various sizes without distorting the image. * the corners are never rescaled * horizontal sides can be stretched horizontally * vertical sides can be stretched vertically * the interior can be stretched both ways Of course that means that the sides and the interior must be "special" images that can be stretched without visible distortion. How it is stored Each 2 int16 fields makes a texture coordinate. The first 9 texture are coordinates are the top left coordinate of each of the 9 rectangles and the next 9 coordinates are the bottom right coordinate of each of the 9 rectangles. When both coordinates are 0 then the rectangle is not used. The order of the coordinates is top bottom and left to right.
