Console.BINA File
Console.BINA File
 |

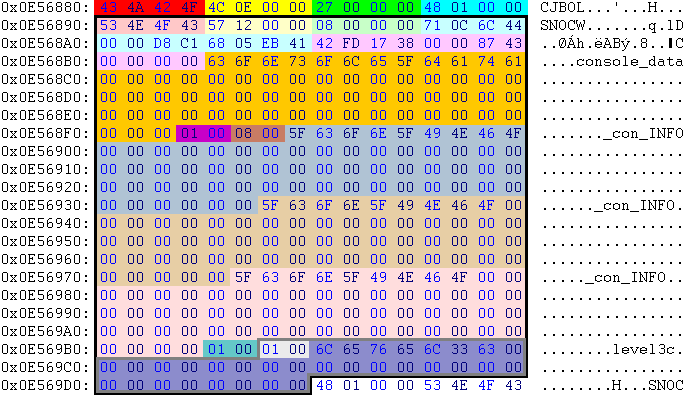

| Hex | Translation | Meaning | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 4A 42 4F | OBJC | object collection | ||||||||||||||||||||||||
| 4C 0E 00 00 | 3660 | 3660 bytes is the length of the following console part from this position | ||||||||||||||||||||||||
| 27 00 00 00 | 39 | unknown; do not change it | ||||||||||||||||||||||||
| 48 01 00 00 | 328 | 328 bytes (20.5 lines) is the lenght of the following package (area edged in black) | ||||||||||||||||||||||||
| Below follows the first package. | ||||||||||||||||||||||||||
| 53 4E 4F 43 | CONS | console | ||||||||||||||||||||||||
| 57 12 00 00 | 5463 | old file ID | ||||||||||||||||||||||||
| 08 00 00 00 | 8 | unknown | ||||||||||||||||||||||||
| 71 0C 6C 44 | 944.194396 | x-position of the spawn point of the console | ||||||||||||||||||||||||
| 00 00 D8 C1 | -27.000000 | y-position (height) of the spawn point of the console | ||||||||||||||||||||||||
| 68 05 EB 41 | 29.377639 | z-position of the spawn point of the console | ||||||||||||||||||||||||
| 42 FD 17 38 | 0.000036 | rotation on the x-axis in degrees | ||||||||||||||||||||||||
| 00 00 87 43 | 270.000000 | rotation on the y-axis in degrees | ||||||||||||||||||||||||
| 00 00 00 00 | 0.000000 | rotation on the z-axis in degrees | ||||||||||||||||||||||||
| console_data | console type name (reference to 00761-console_data.CONS of level 0) | |||||||||||||||||||||||||
| 01 00 | 1 | console ID | ||||||||||||||||||||||||
| 08 00 | 8 | console options; it's a bitstet; the following options are possible (values in dec):
| ||||||||||||||||||||||||
| _con_INFO | "console deactivated" texture name (reference to 00800-_CON_INFO.TXMP of level 0) | |||||||||||||||||||||||||
| _con_INFO | "console activated" texture name (reference to 00800-_CON_INFO.TXMP of level 0) | |||||||||||||||||||||||||
| _con_INFO | "console used" texture name (reference to 00800-_CON_INFO.TXMP of level 0) | |||||||||||||||||||||||||
| 01 00 | 1 | amount of blocks that follow | ||||||||||||||||||||||||
| Below follows the first block. It's a part of the package. | ||||||||||||||||||||||||||
| 01 00 | 1 | block option ID; the following options are possible (values in dec):
(Thanks to Loser for his help.) | ||||||||||||||||||||||||
| level3c | name of the function, which is called up when you use the console | |||||||||||||||||||||||||
