Door.BINA File

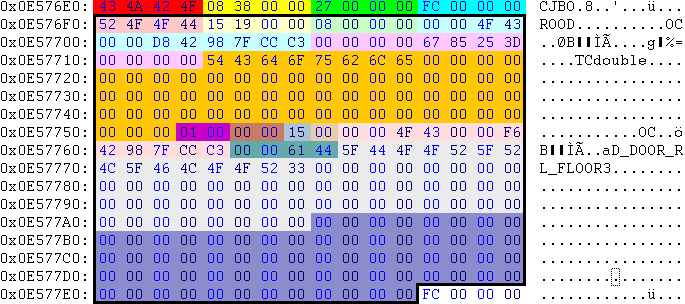

Hex	Translation	Meaning
43 4A 42 4F	OBJC	object collection
08 38 00 00	14344	14344 bytes is the length of the following door part from this position
27 00 00 00	39	unknown; do not change it
FC 00 00 00	252	252 bytes (15.75 lines) is the lenght of the following package (area edged in black)
Below follows the first package.
52 4F 4F 44	DOOR	door
15 19 00 00	6421	old file ID
08 00 00 00	8	unknown
00 00 4F 43	207.000000	x-position of the bottom of the door
00 00 D8 42	108.000000	y-position (height) of the bottom of the door
98 7F CC C3	-408.996826	z-position of the bottom of the door
00 00 00 00	0.000000	rotation on the x-axis in degrees
67 85 25 3D	0.040410	rotation on the y-axis in degrees
00 00 00 00	0.000000	rotation on the z-axis in degrees
TCdouble		door type name (reference 00957-TCdouble.DOOR of level 0)
01 00	1	door ID
00 00	0	unknown
15	21	option 1, it's a bitset, so the following bits are possible (values in dec): 0 -  nothing 1 -  door locked 2 -  unknown 4 -  unknown 8 -  unknown 16 -  open with [Ctrl] 32 -  unknown 64 -  unknown 128 -  double door
00	0	option 2, it's a bitset, so the following bits are possible (values in dec): 0 -  nothing 1 -  unknown 2 -  one way door (one side locked, other side unlocked) 4 -  reverse of the one way door (now the other side is locked) 8 -  unknown 16 -  unknown 32 -  unknown 64 -  unknown 128 -  unknown
00 00 4F 43	207.000000	x-position of the center of the door
00 00 F6 42	123.000000	y-position (height) of the center of the door
98 7F CC C3	-408.996826	z-position of the center of the door
00 00 61 44	900.000000	activation radius
_DOOR_RL_FLOOR3		name of the first door texture (00216-_DOOR_RL_FLOOR3.TXMP)
not used		name of the second door texture
