| Hex | Translation | Meaning |
|---|
| 43 4A 42 4F | OBJC | object collection |
| C8 91 00 00 | 37320 | 37320 bytes is the length of the following flag part from this position |
| 27 00 00 00 | 39 | unknown; do not change it |

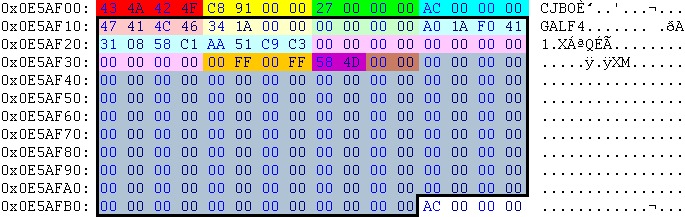

| AC 00 00 00 | 172 | 172 bytes (10.75 lines) is the lenght of the following package (area edged in black) |
| Below follows the first package. |
| 47 41 4C 46 | FLAG | flag |
| 34 1A 00 00 | 6708 | old file ID |
| 00 00 00 00 | 0 | unknown |
| A0 1A F0 41 | 30.013000 | x-position of the flag |
| 31 08 58 C1 | -13.501999 | y-position (height) of the flag |
| AA 51 C9 C3 | -402.638000 | z-position of the flag |
| 00 00 00 00 | 0.000000 | rotation on the x-axis in degrees |
| 00 00 00 00 | 0.000000 | rotation on the y-axis in degrees |
| 00 00 00 00 | 0.000000 | rotation on the z-axis in degrees |
| 00 FF 00 FF | 0, 255, 0; 255 | flag colour (blue, green, red); transparency |
| 58 4D | MX | flag prefix ? |
| 00 00 | 0 | flag ID |
| not used | space for notes (128 characters possible)
|
Flag.BINA File
