Furniture.BINA File

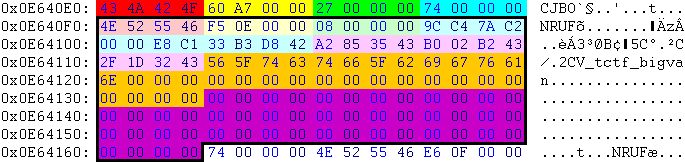

Hex	Translation	Meaning
43 4A 42 4F	OBJC	object collection
60 A7 00 00	42848	42848 bytes is the length of the following furniture part from this position
27 00 00 00	39	unknown; do not change it
74 00 00 00	116	116 bytes (7.25 lines) is the lenght of the following package (area edged in black)
Below follows the first package.
4E 52 55 46	FURN	furniture
F5 0E 00 00	3829	old file ID
08 00 00 00	8	unknown
9C C4 7A C2	-62.692001	x-position of the furniture
00 00 E8 C1	-29.000000	y-position (height) of the furniture
33 B3 D8 42	108.349998	z-position of the furniture
A2 85 35 43	181.522003	rotation on the x-axis in degrees
B0 02 B2 43	356.020996	rotation on the y-axis in degrees
2F 1D 32 43	178.113998	rotation on the z-axis in degrees
_tctf_bigvan		name of the furniture type
not used		name of the locklight tag

This file is an old relict and therefore completely useless. You can set all to zero. Oni doesn't need it. All furnitures are an integral part of the level model. Maybe it was used during the development of Oni to build the level.
