TRIG FILE
Trigger - Level 0 File
TRIG FILE
 |

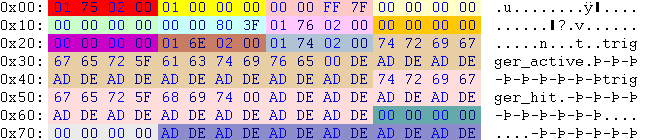

| Hex | Translation | Meaning |
|---|---|---|
| 01 75 02 00 | 629 | 00629-trigger_arc.TRIG |
| 01 00 00 00 | 0 | level 0 |
| 00 00 FF 7F | 0, 0, 255; 127 | trigger colour (blue, green, red); trigger transparency; both always the same |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 80 3F | 1.000000 | unknown; always the same |
| 01 76 02 00 | 630 | link to 00630-.M3GM |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0 | unknown |
| 01 6E 02 00 | 622 | link to 00622-trigger_emitter_0.TRGE; always the same |
| 01 74 02 00 | 628 | link to 00628-eyearc.OBAN |
| trigger_active | active trigger sound (reference to 08668-trigger_active.amb.OSBD); always the same | |
| trigger_hit | hit trigger sound (reference to 08670-trigger_hit.imp.OSBD); always the same | |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0 | unknown; always zero |
| AD DE | dead | not used |
