TURR FILE
Turret - Level 0 File
TURR FILEThe first pic shows the beginning of this file. The second pic the end of it.
 |
 |
| Hex | Translation | Meaning |
|---|---|---|
| 01 BF 01 00 | 447 | 00447-sap_turret_floor.TURR |
| 01 00 00 00 | 0 | level 0 |
| sap_turret_floor | name of this file | |
| 00 00 00 00 | 0 | unknown; always zero |
| AD DE | dead | not used |
| 00 00 | 0 | unknown; always zero |
| 07 00 | 7 | amount of used packages (the file contains space for 16 packages) |
| 01 00 | 1 | unknown; always the same |
| AD DE | dead | not used |
| 01 C0 01 00 | 448 | link to 00448-.M3GM (turret base) |
| 00 00 00 00 | 0 | obsolete OBLS link; always zero |
| 00 00 00 00 | 0 | unknown; always zero |
| 01 C3 01 00 | 451 | link to 00451-.M3GM (turret arm) |
| 00 00 00 00 | 0 | unknown; always zero |
| 01 C4 01 00 | 452 | link to 00452-.M3GM (turret weapon) |
| 00 00 00 00 | 0 | unknown; always zero |
| 0D F8 C1 34 | 0.000000... | X translation for turret arm |
| CF B4 07 41 | 8.481642 | Y translation for turret arm |
| 13 A2 03 34 | 0.000000... | Z translation for turret arm |
| DA F5 9F B1 | X translation for turret weapon (arm relative) | |
| 1D FC 33 32 | 0.000000... | translation for turret weapon (arm relative) |
| F7 FE 3F B3 | -0.000000... | Z translation for turret weapon (arm relative) |
| Below follows the first package. | ||
| w2_sap_e01 | 3D particle name (reference to 06243-3RAPw2_sap_e01.BINA) | |
| 00 00 00 00 | 0 | unknown; always zero |
| 05 00 00 00 | 5 | shot frequency in 1/60 seconds (5/60 = 0.0833 = 1 shot per 0.0833 seconds) |
| B0 90 9F B8 | -0.000076 | x1 coefficient of transform matrix |
| 9E C1 7F 3F | 0.999048 | y1 coefficient of transform matrix |
| 39 AC 32 3D | 0.043621 | z1 coefficient of transform matrix |
| 62 F8 0E 3C | 0.008726 | x2 coefficient of transform matrix |
| C9 A9 32 BD | -0.043619 | y2 coefficient of transform matrix |
| 21 BF 7F 3F | 0.999010 | z2 coefficient of transform matrix |
| 81 FD 7F 3F | 0.999962 | x3 coefficient of transform matrix |
| D6 6B EF 39 | 0.000457 | y3 coefficient of transform matrix |
| A0 C7 0E BC | -0.008715 | z3 coefficient of transform matrix |
| 46 0F 4D BD | -0.050063 | x4 coefficient of transform matrix |
| 47 C9 C4 BD | -0.096087 | y4 coefficient of transform matrix |
| 81 4E 94 40 | 4.634583 | z4 coefficient of transform matrix |
| AD DE | dead | not used |

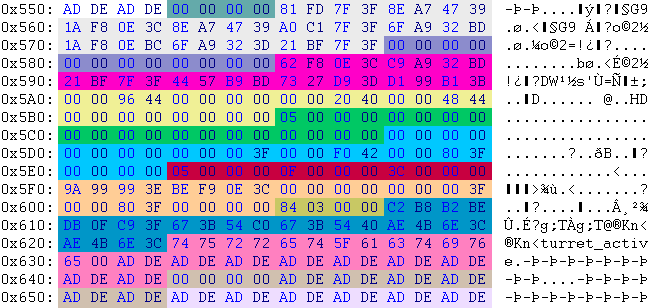

| Below follows the end of the TURR file. | ||
| 00 00 00 00 | 0 | unknown; always zero |
| 81 FD 7F 3F | 0.999962 | x1 coefficient of transform matrix |
| 8E A7 47 39 | 0.000190 | y1 coefficient of transform matrix |
| 1A F8 0E 3C | 0.008726 | z1 coefficient of transform matrix |
| 8E A7 47 39 | 0.000190 | x2 coefficient of transform matrix |
| A0 C1 7F 3F | 0.999048 | y2 coefficient of transform matrix |
| 6F A9 32 BD | -0.043619 | z2 coefficient of transform matrix |
| 1A F8 0E BC | -0.008726 | x3 coefficient of transform matrix |
| 6F A9 32 3D | 0.043619 | y3 coefficient of transform matrix |
| 21 BF 7F 3F | 0.999010 | z3 coefficient of transform matrix |
| 00 00 00 00 | 0.000000 | x4 coefficient of transform matrix |
| 00 00 00 00 | 0.000000 | y4 coefficient of transform matrix |
| 00 00 00 00 | 0.000000 | z4 coefficient of transform matrix |
| 62 F8 0E 3C | 0.008726 | unknown |
| C9 A9 32 BD | -0.043619 | unknown |
| 21 BF 7F 3F | 0.999010 | unknown |
| 44 57 B9 BD | -0.090498 | unknown |
| 73 27 D9 3D | 0.106032 | unknown |
| D1 99 B1 3B | 0.005420 | unknown |
| 00 00 96 44 | 1200.000000 | unknown; always the same |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 00 00 20 40 | 2.500000 | unknown; always the same |
| 00 00 48 44 | 800.000000 | unknown; always the same |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 05 00 00 00 | 5 | unknown; always the same |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0 | unknown; always zero |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 00 00 00 3F | 0.500000 | unknown; always the same |
| 00 00 F0 42 | 120.000000 | unknown; always the same |
| 00 00 80 3F | 1.000000 | unknown; always the same |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 05 00 00 00 | 5 | unknown; always the same |
| 0F 00 00 00 | 15 | unknown; always the same |
| 3C 00 00 00 | 60 | unknown; always the same |
| 9A 99 99 3E | 0.300000 | unknown; always the same |
| BE F9 0E 3C | 0.008727 | unknown; always the same |
| 00 00 00 00 | 0.000000 | unknown; always zero |
| 00 00 00 3F | 0.500000 | unknown; always the same |
| 00 00 80 3F | 1.000000 | unknown; always the same |
| 00 00 00 3F | 0.500000 | unknown; always the same |
| 84 03 00 00 | 900 | unknown |
| C2 B8 B2 BE | -0.349066 | unknown; always the same if it's a floor turret |
| DB 0F C9 3F | 1.570796 | unknown; always the same if it's a floor turret |
| 67 3B 54 C0 | -3.316126 | unknown; always the same if it's a floor turret |
| 67 3B 54 40 | 3.316126 | unknown; always the same if it's a floor turret |
| AE 4B 6E 3C | 0.014544 | unknown |
| AE 4B 6E 3C | 0.014544 | unknown |
| turret_active | active turret sound (reference to 08674-turret_active.amb.OSBD) | |
| . | unknown; always the same | |
| AD DE | dead | not used |
|
